Main Features
1. Strong compatibility: It can count and bottle various kinds of solid preparation or solid granules such as tablet (including special shape tablet), capsule, softgel (transparent and non-transparent), pill , etc.
2. Filling by vibration: By the vibration, the material is moving evenly in the channels, and with the patent-owned turning plate structure, the separation and filling process is even and steady , protecting well the material.
3. Effective anti-dust : Adopting the anti-dust photoelectric sensing technology developed by ourselves, the machine also can work stably under the high dust circumstance.
4. Precise counting : Counting with automatic photoelectric sensor , the error of bottling is less than national standard.

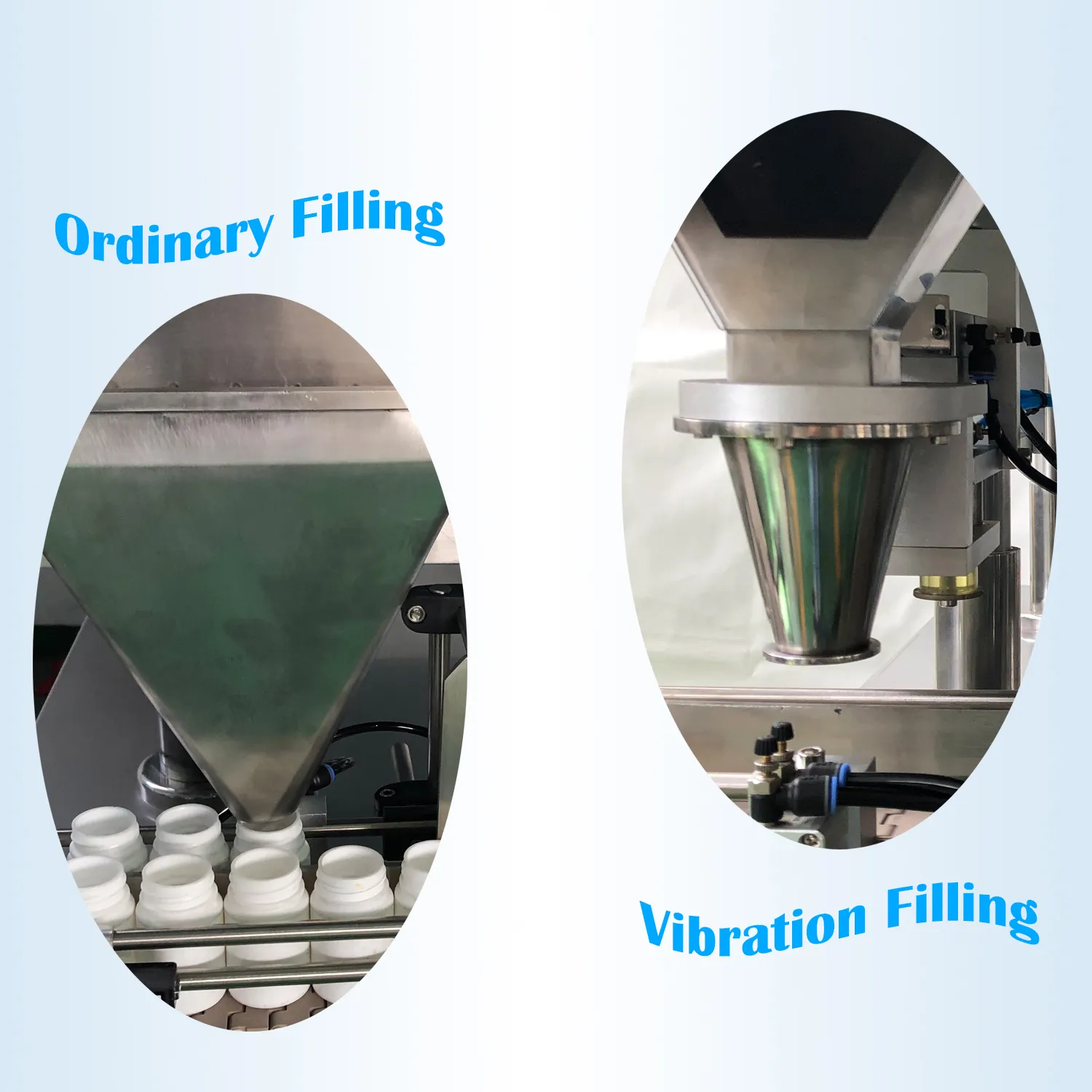

5. Special structure of the discharge spout can prevent drug blocking. Even small spout bottle can be filled fast (optional)
6. High intelligence : It has various intelligent alarm functions such as no counting without bottle, automatic fault checking and so on.
7. Easy operation : Adopting intellectualized design, all kinds of operation parameters can be set according to the requirement . It can store 10 groups of set parameters for use.
Main Technical Parameters
|
Applicable Bottle Shape |
Round and square bottle (10~500ml) |
|
Filling Material |
Φ0~5# capsule, softgel, Φ5.5～12 compressed tablet & special-shaped tablet, sugar coated tablet，Φ3～12 pill |
|
Production Capacity |
10～30 bottles /min., (Depending on the bottle size, filling quantity in each bottle and the material specification) |
|
Bottling Volume Range |
1~9999 |
|
Power Supply |
AC220V 50Hz 0.6kw |
|
Accuracy Rate |
＞99.5% |
|
Air Pressure |
0.6Mpa |
|
Overall Dimension |
660*1280*780mm |
|
Weight |
230kg |
Main Configuration List
|
NO |
Description |
Manufacturer |
|
1 |
Motor |
TQG(Taiwan) |
|
2 |
Photoelectric Sensor for Bottle |
ORMON |
|
3 |
Photoelectric Head for Counting |
Everlight Electronics., Ltd of Taiwan |
|
4 |
Pneumatic Components |
ShangHai Xingchen |
|
5 |
Switch Button |
French Schneider |
|
6 |
Human Computer Interface |
Siemens |
|
7 |
Main Control Chip |
Imported from STMicroelectronics Co., Ltd. |
|
8 |
The Leakage Switch |
French Schneider |
|
9 |
Switching Power Supply |
French Schneider |

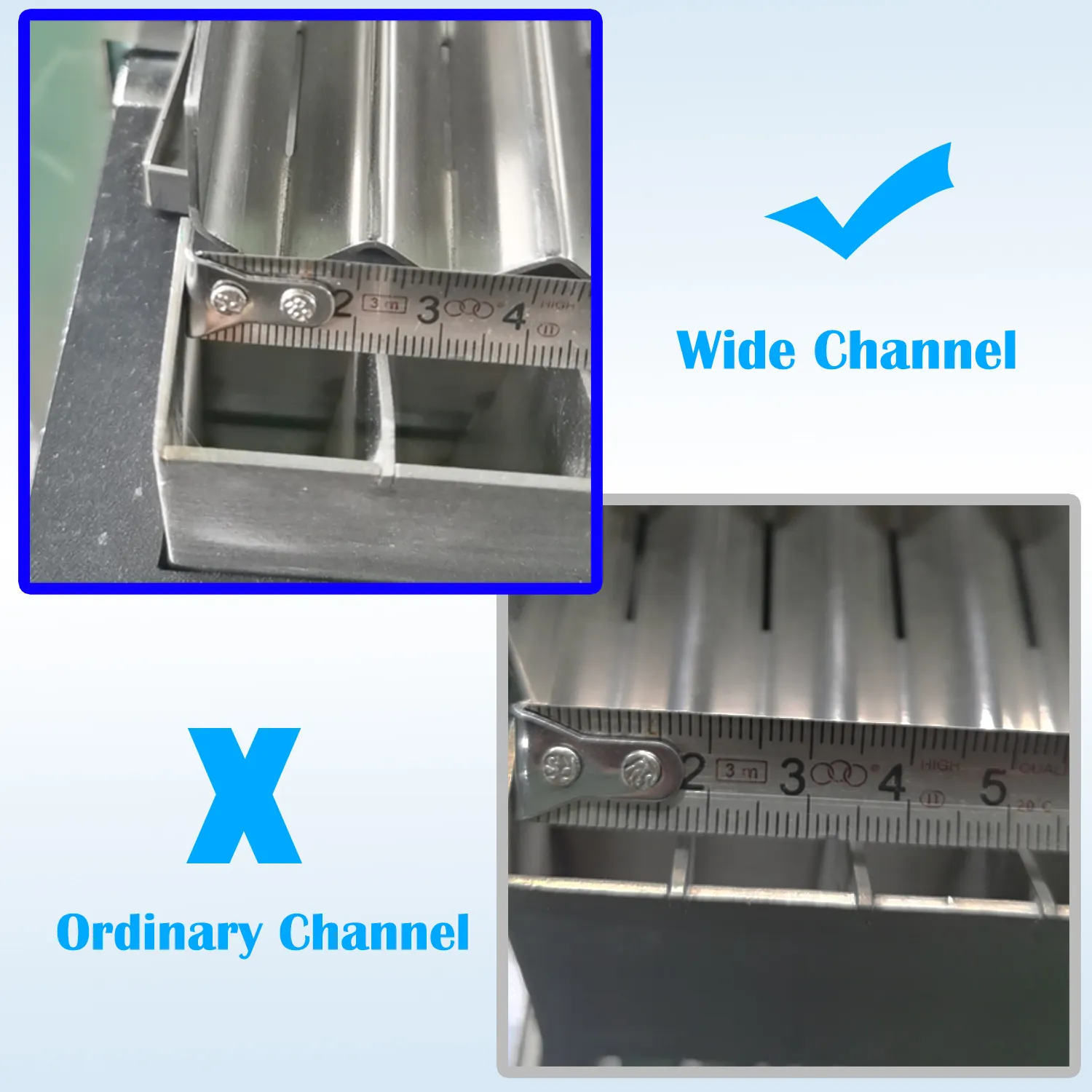

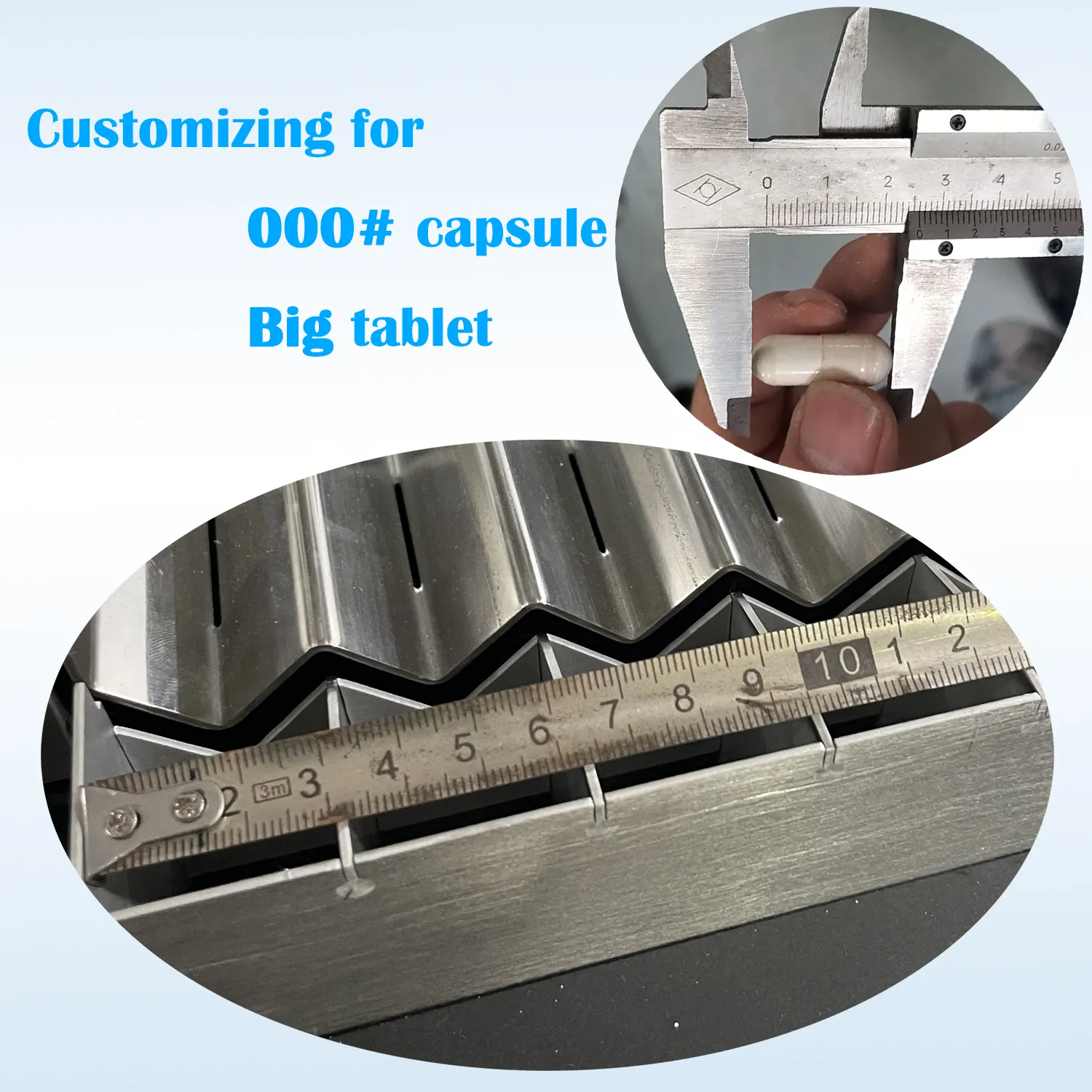

Machine Details
 |
 |
 |

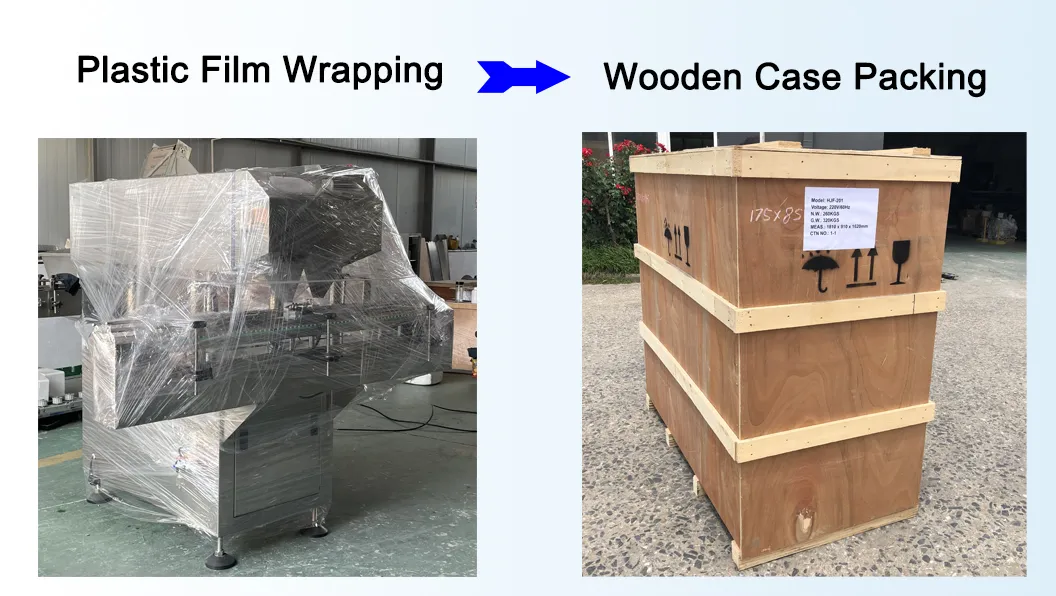

Packing
 |
Applications
 |
 |
