Introduction and Features
Machine with advanced technology, beautiful appearance, reasonable structure, stable performance, precise operation, efficient and durable, easy to operate, energy saving and other diversified quality characteristics. Set of measuring, bag making, filling, sealing, cutting, testing, coding, counting, transport and other processes in a fully automatic multi-functional packaging machine.
Machine manually using man-machine interface, automatic detection and alarm system program, application imports PLC, cylinder, optical, touch screen, temperature controller, frequency converter, relays, servo motor, high quality power supply circuit.
Technical Parameter
|
Model |
DXDK-420 |
|
Bag length |
30--170mm(L) |
|
Bag width |
15---50mm(W) |
|
Max. film width |
440mm |
|
Speed |
20-50 bags/min/lane |
|
Air Pressure |
0.65mpa |
|
Air Consumption |
0.3m3/min |
|
Voltage |
220VAC/50Hz |
|
Power |
2.2 KW |
|
Machine Dimension |
1100mm(L)*990mm(W) *1700mm (H) |
|
Weight |
600 kg |
Machine Deatils
 |
 |

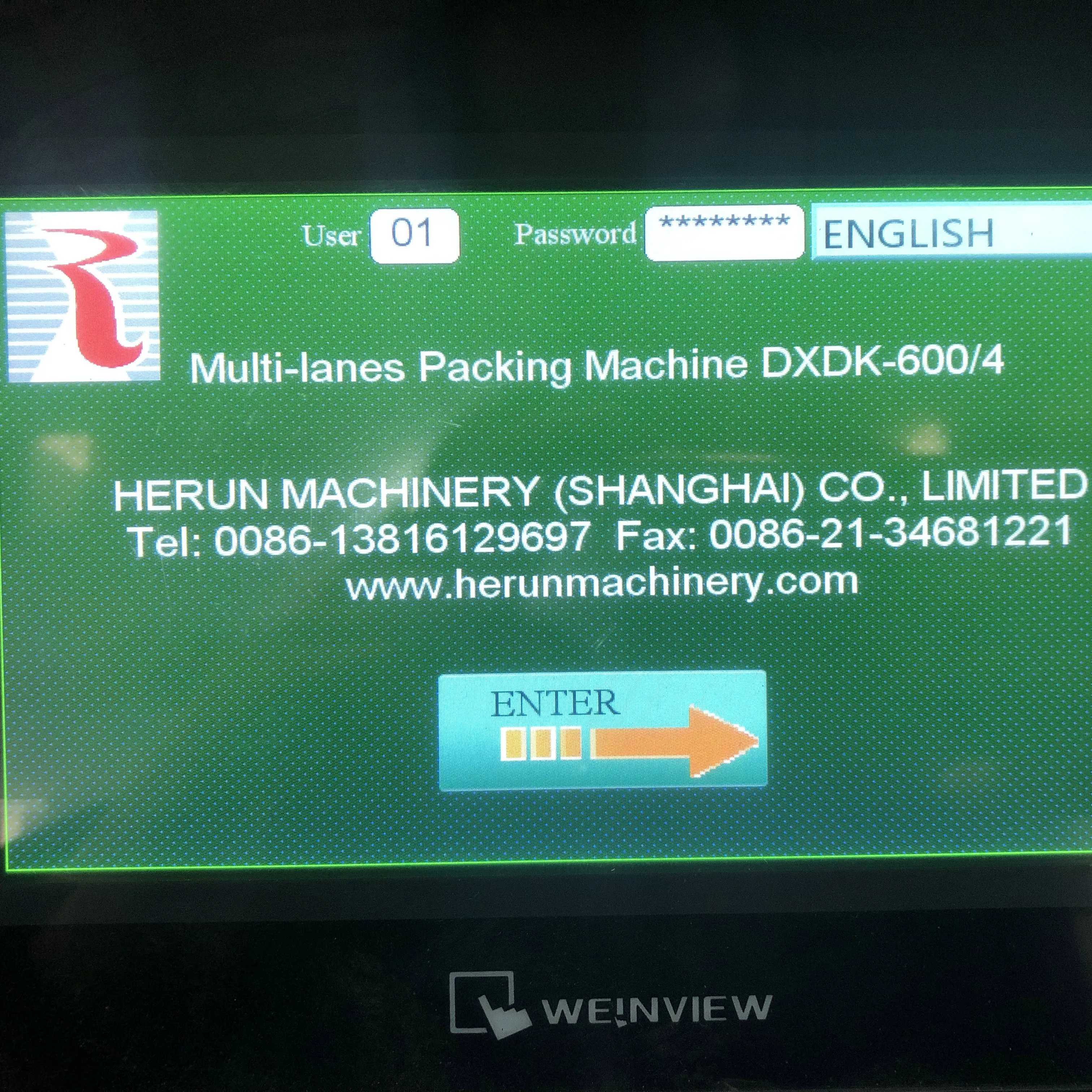

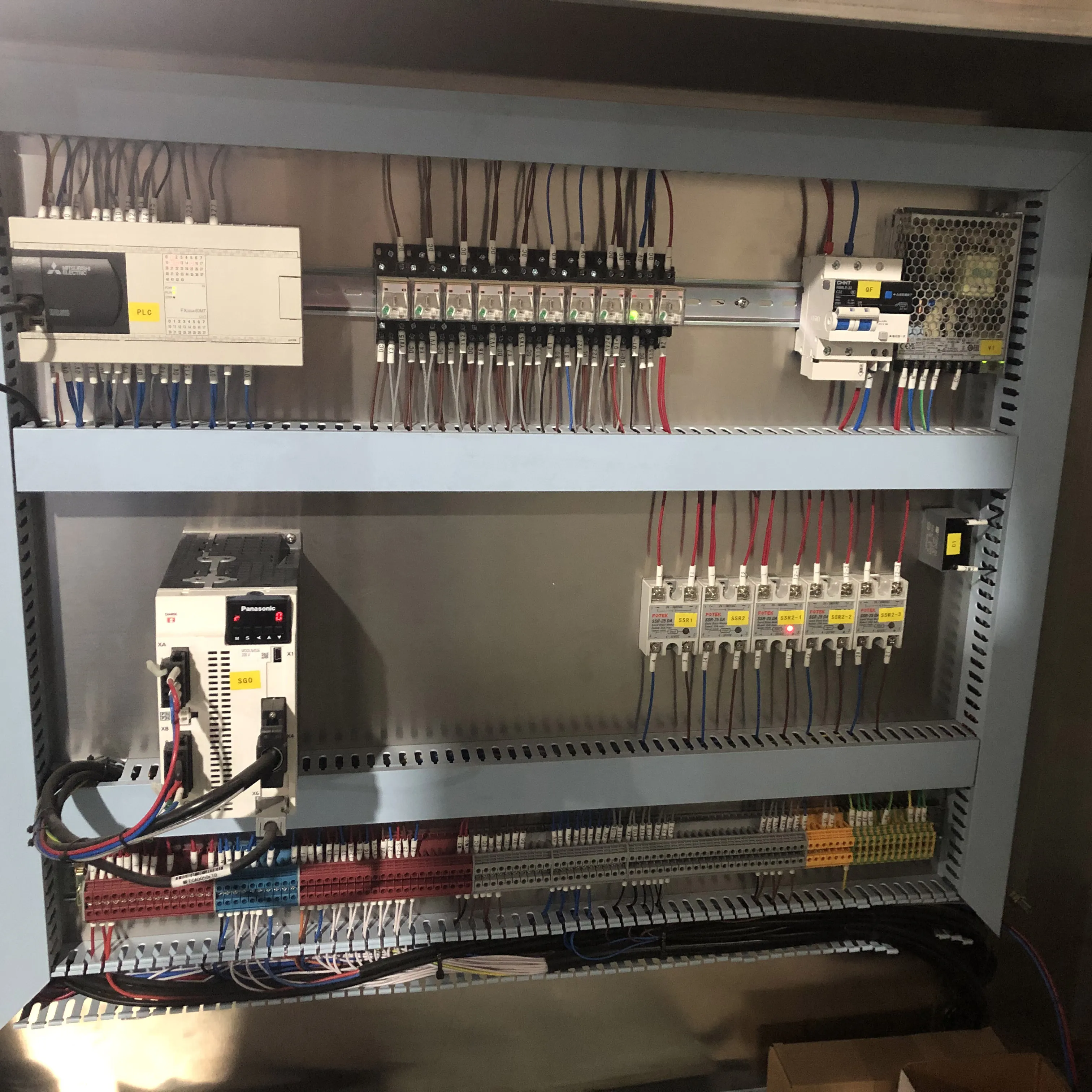

| Electric Cabinet | Touch Screen |
 |
 |

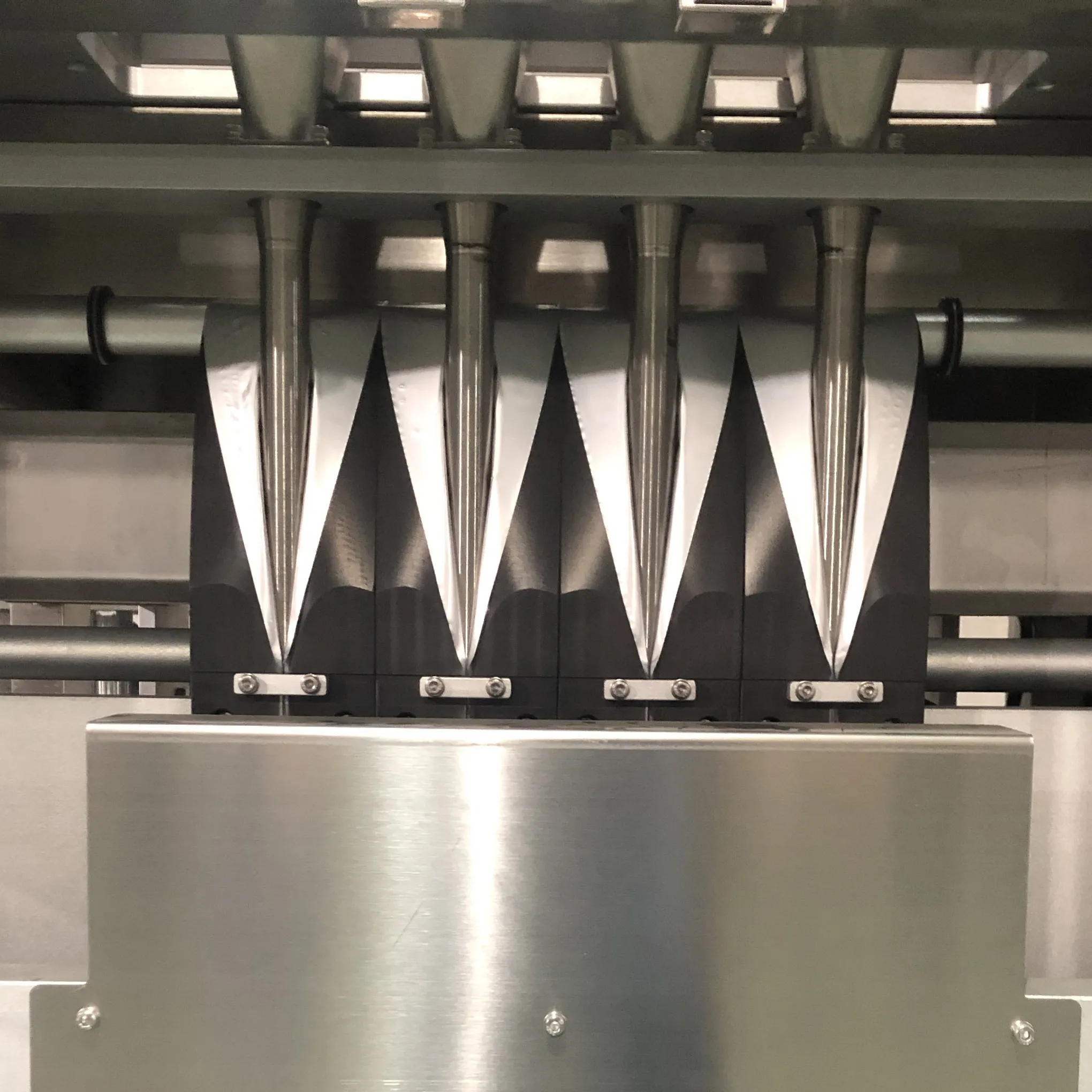

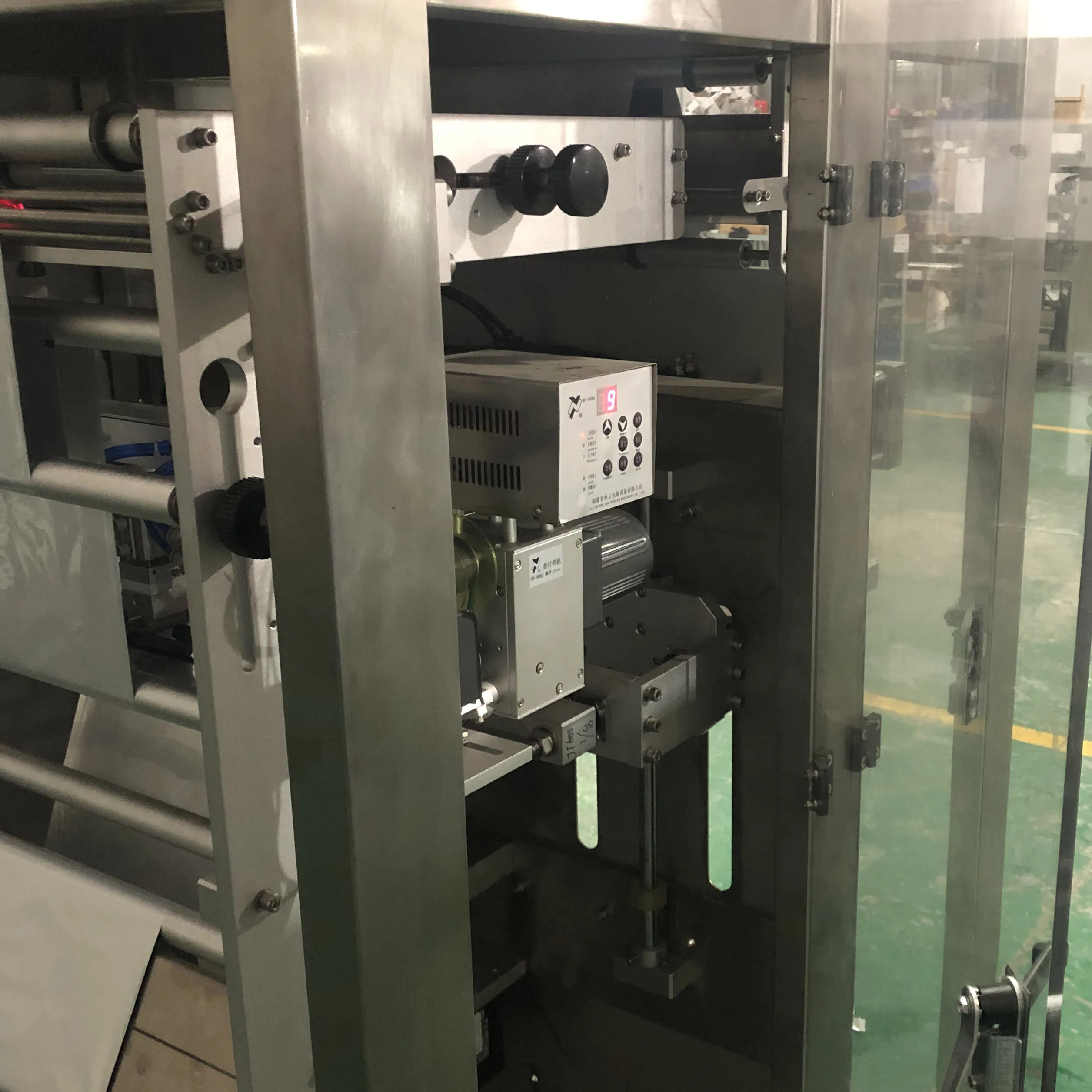

| Date Printing | Sachet Former |
 |
 |

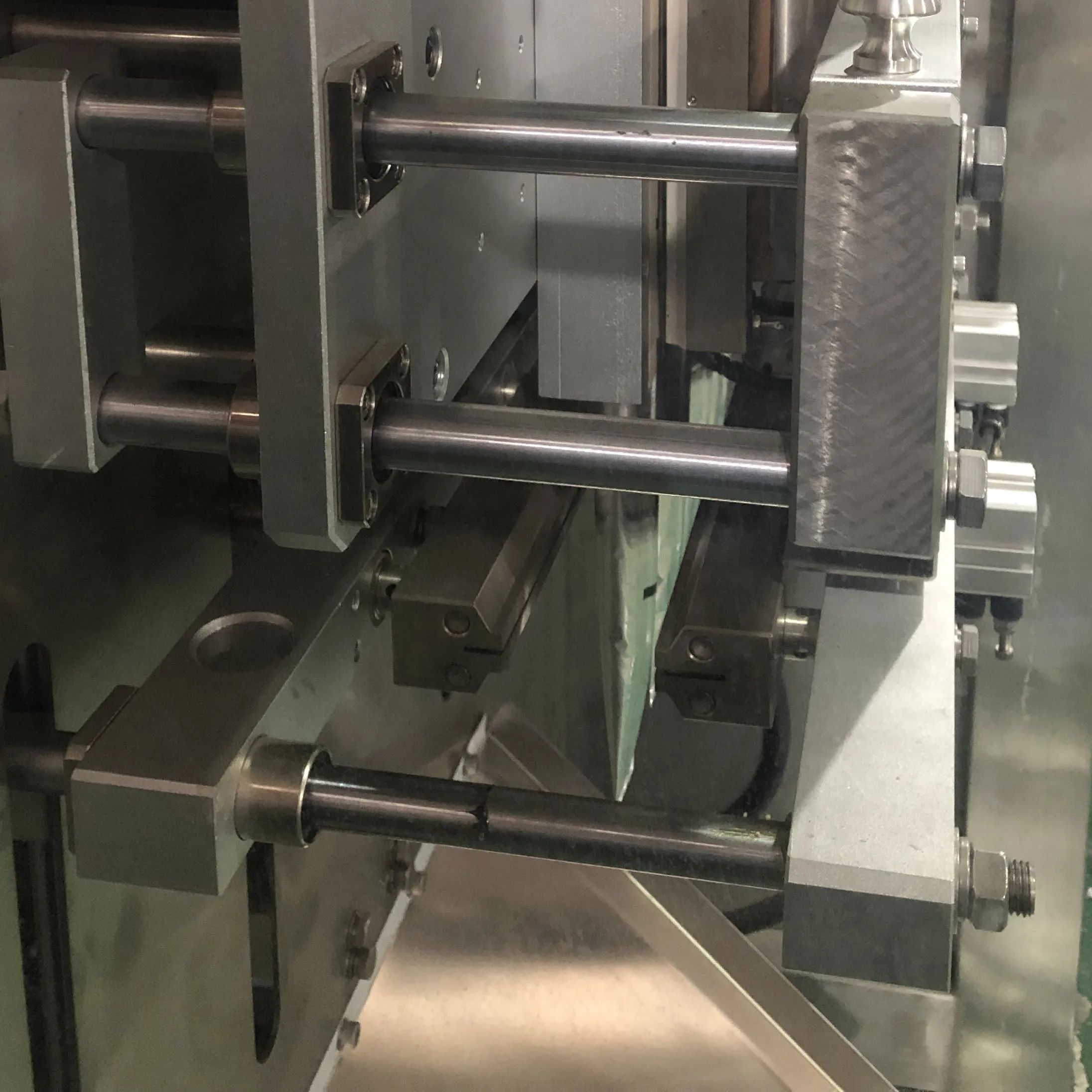

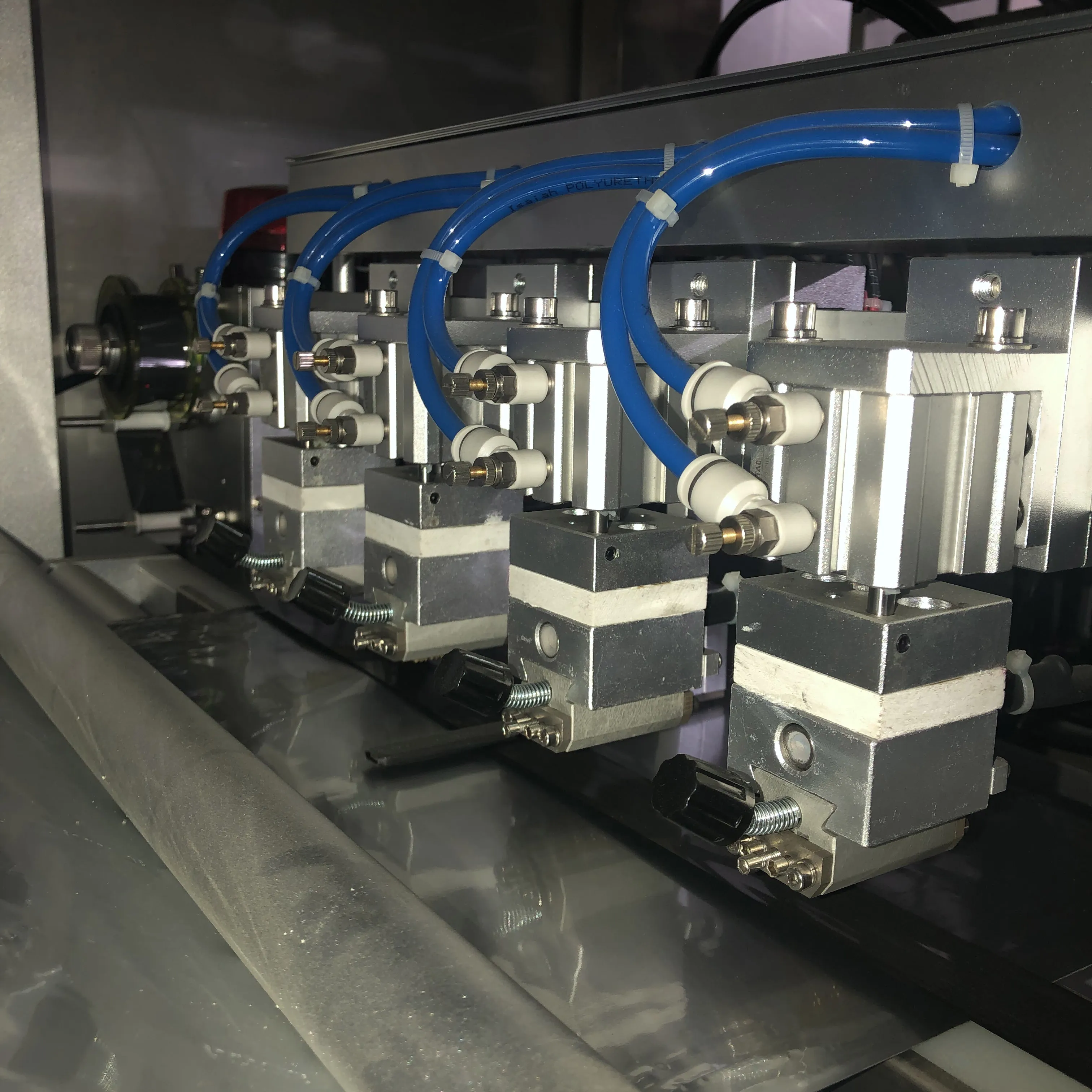

| Printer Regulator | Horizontal Sealing |
Packing
 |
 |
Applications
 |
 |
