Main Features
1. High-Speed, the production capacity is twice or triples than other of Softgel encapsulation machine.
2. Full automatic and intelligence software; make the machine easy to operate.
3. Siemens Servo-motor driving system and Germany mechanical parts, reduce the gear driving, making the machine running in more steady, and in lower noise. Can updated the system as German PPC control system.
4. The machine is optimally designed on driving system, the cam, gear is replaced by servo-driving,
the maintains is easy and lower cost.
5. Can be added the gelatin film thickness control system, just set the data on HIM, machine finished the adjusting automatic, precision to 0.02 mm.
6. Digital filling system, the filling volume is controlled by PLC, keep the high precision filling.
Precision can touch +/-1%
7. Water-bath injector, the temperature of injector is in high precision, keep high effective, 99.99%.
Main Technical Parameters
|
Model |
FASE-180-II |
|
Roller Die Dimension |
Φ103x180 mm |
|
Roller Die Pressure |
0.1-0.5MPa |
|
Roller Die Speed |
0-6rpm Stepless Speed Adjust |
|
Material Feeding Quantity |
10 X (0-2)mL |
|
Filling Quantity Precision |
<500mg, ±1% ; >500mg, ±0.5% |
|
Power |
AC380V 50Hz 7kW |
|
External Size |
1680×750×1800mm |
|
Weight |
1200kg |
Machine Details
 |
 |
|
Melting Gelatin System (Melting Gelatin Tank, Buffer Tank, Vacuum Pump, Separator) |
Gelatin Tank (Connecting with the main machine) |
 |
 |

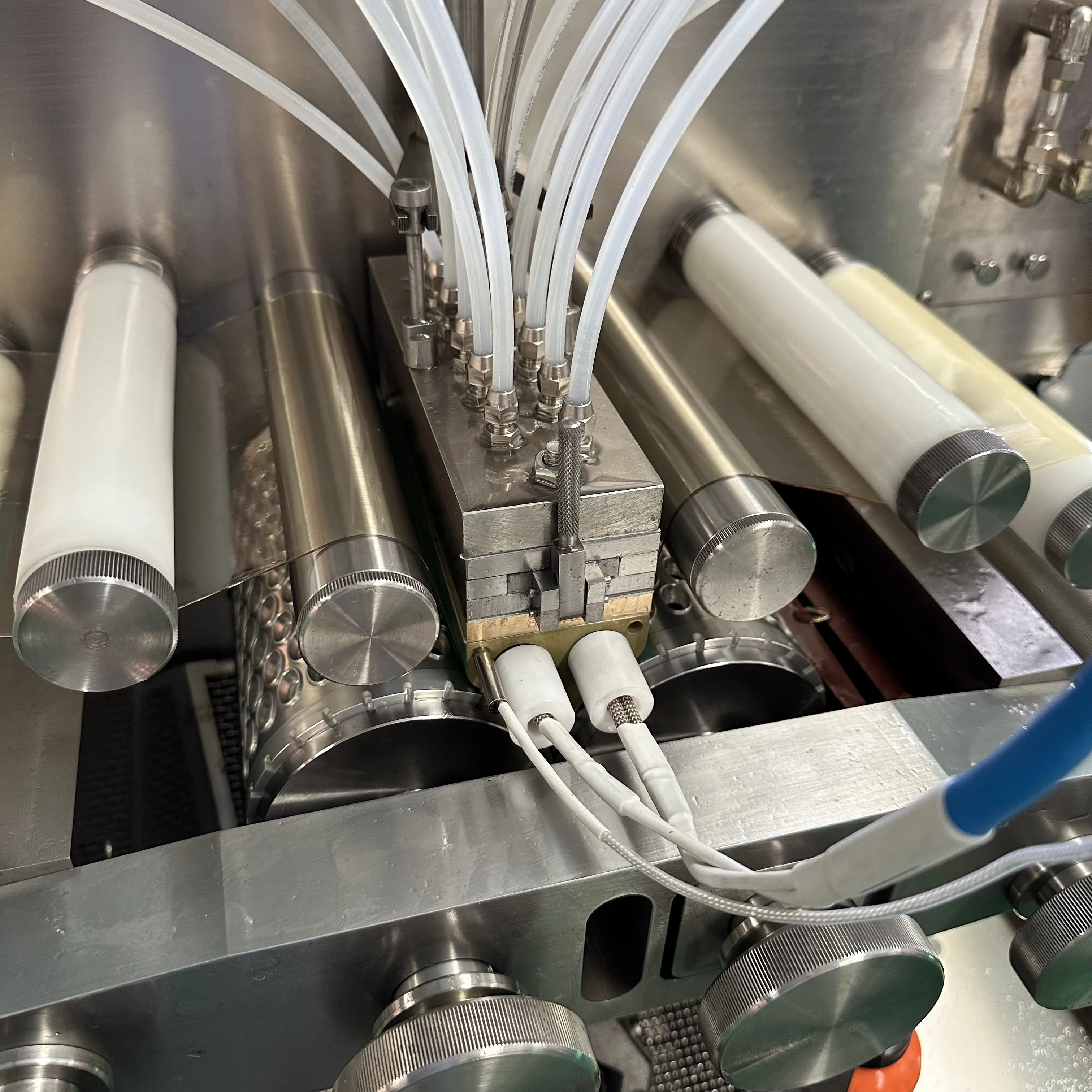

| Softgel Flim Extrusion Device | Molding Device |
 |
 |
| Waste Collecting Device | Softgel Drying Device |
