Introduction
This semi-automatic tube filling and sealing machine is an automated packaging device primarily used for filling and sealing liquids and paste-type materials (such as toothpaste, medicinal ointments, cosmetics, etc.) and belongs to the category of filling equipment. It is widely used in the pharmaceutical, daily chemical, food, and chemical industries, compatible with various packaging forms such as flexible tubes, aluminum tubes, and composite tubes.
The equipment features a semi-enclosed structure, with a built-in PLC control system and human-machine interface, integrating filling, sealing, and printing functions, and achieves precise positioning through photoelectric alignment technology.
Main Features
1. High Automation: The filling and sealing machine uses an advanced automated control system, capable of performing a series of operations such as automatic filling, measuring, and sealing, reducing manual labor and improving production efficiency.
2. High-Precision Filling: Equipped with a precise filling system, this machine can achieve high-precision quantitative filling, ensuring that each bottle is filled accurately and consistently, which improves product quality and stability.
3. Various Packaging Types: It is suitable for different types of packaging such as bottles, cans, and tubes, meeting the packaging needs of various products.
4. Flexible Adjustable Parameters: The filling and sealing machine offers flexible parameter settings, allowing adjustments in filling speed, filling volume, sealing temperature, and other parameters according to the characteristics and requirements of different products to meet diverse production needs.
5. Safe and Reliable: The machine typically features advanced safety devices such as protective doors and emergency stop buttons to ensure operator safety. Additionally, it has fault alarms and automatic shutdown functions to guarantee safe and reliable production.
6. Improved Production Efficiency: Due to its high degree of automation, the filling and sealing machine can achieve continuous production, greatly increasing production efficiency and reducing production costs.
7. Product Quality Assurance: Its precise filling and sealing operations effectively prevent product leakage and contamination, ensuring product quality and hygiene standards.
Overall, the filling and sealing machine has advantages such as high automation, high filling accuracy, wide applicability, and high production efficiency, making it an essential piece of equipment in the packaging industry.
Main Technical Parameters
| Model | HNF-30 |
| Power Supply | 220V/380V |
| Power | 250W×2(outside heating) |
| Filling Range | Plastic/Laminated tube 5~250(ml) |
|
Operation Speed |
10-30/min(the actually production speed depend on the tube size and material viscosity) |
| Suitable tube length | Plastic/Laminated tube 50~210(mm) |
| Whole Machine | about 1150X850X1600 (mm) |
|
Weight |
about 320kg |
| Working Pressure | ＞0.4Mpa |
|
Control type |
Button(If want to use touch screen,it need add money) |
Main Configuration List
|
Item |
Brand |
Remarks |
|
PLC |
Hechuang |
|
|
Frequency inverter |
Beishide |
|
|
Low voltage electrical appliances |
CHNT |
|
|
Electric machinery |
Lichao |
0.75WK 4P |
|
Cylinder |
Ke li zhuo China |
|
|
Electromagnetic valve |
Ke li zhuo China |
|
|
Color Code Sensor |
Panasonic |
Automatic benchmarking |
|
Stepping motor |
Xinjie China |
|
|
Retarder |
Yu hui china |
|
|
Temperature Controller |
Shang he China |
For outside heating |
Machine Deatils
 |
 |

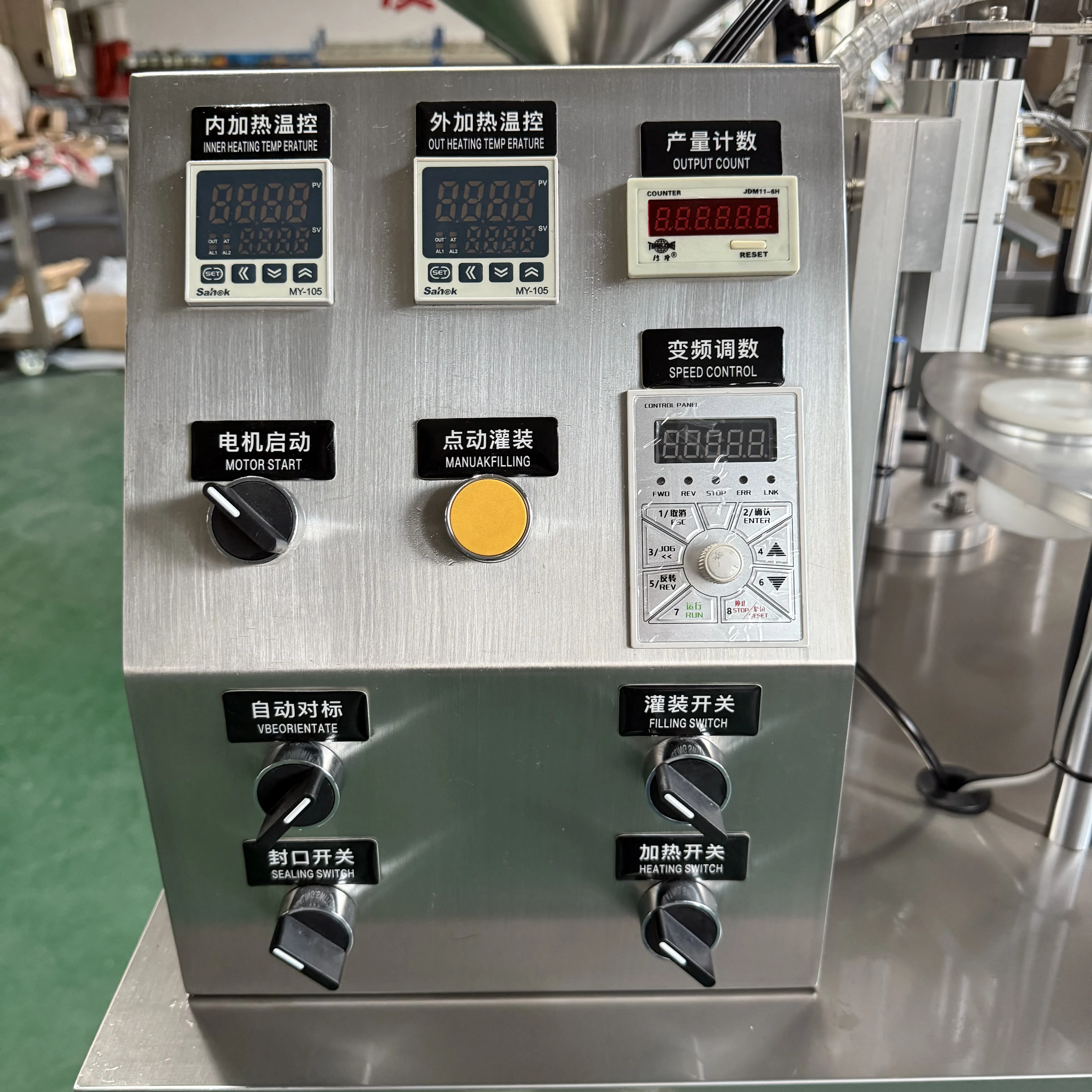

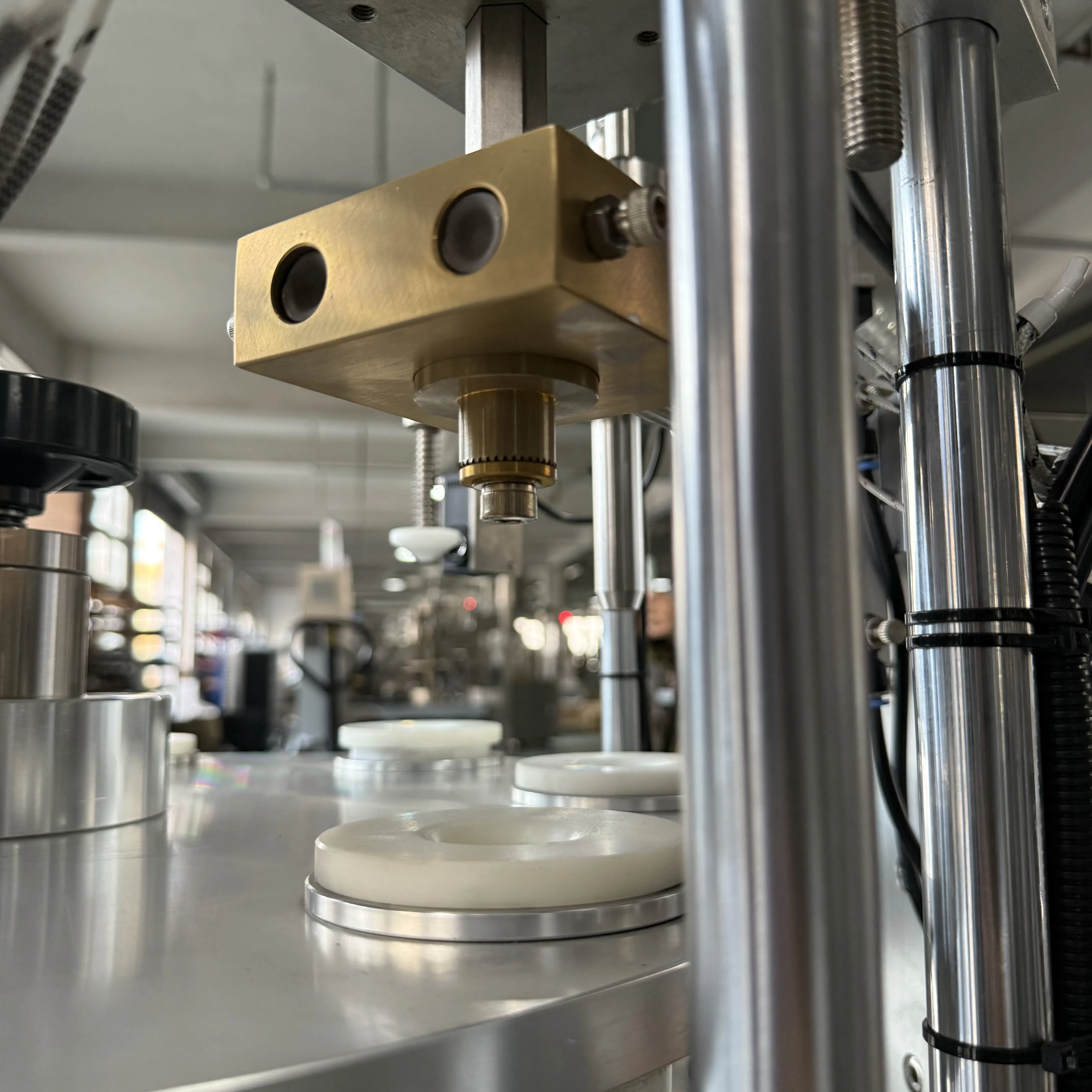

| Control Buttons and Switches | Heated copper block |
 |
 |

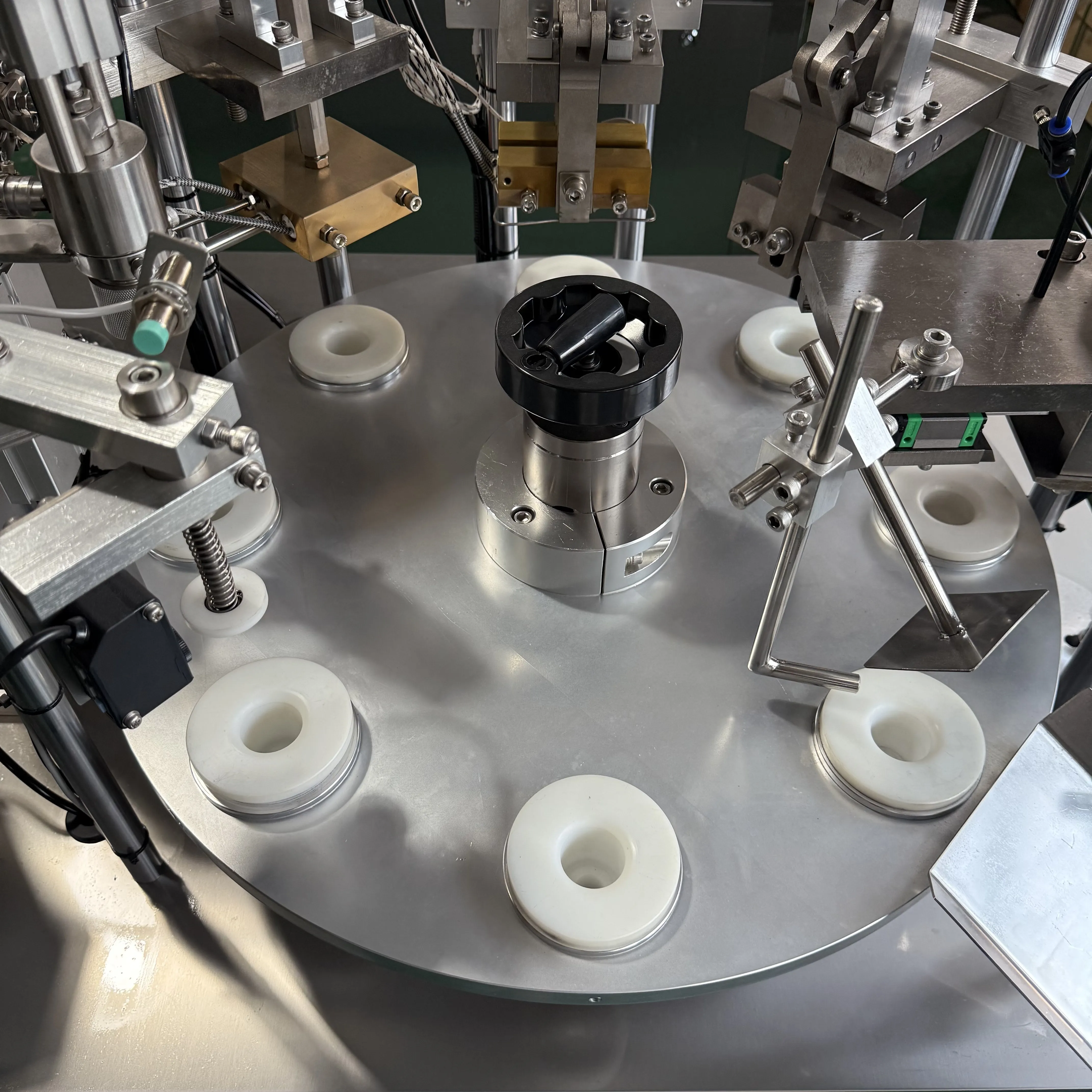

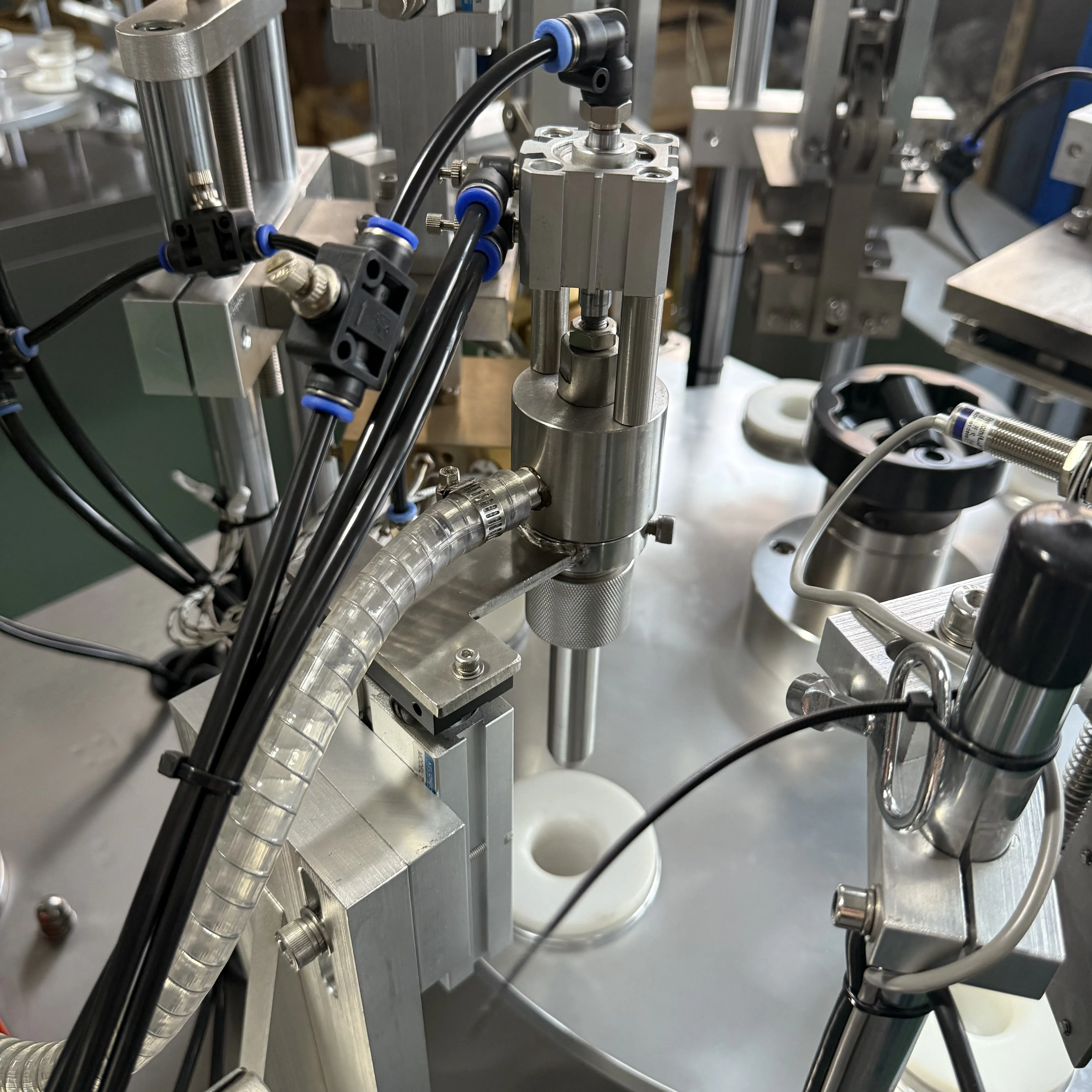

| Tube Holder | Filling Nozzles |
Packing
 |
 |
Applications
 |
 |
