Herun Machinery (Shanghai) Co., Ltd.
Introduction
This series of machine, taking the place of single punching, is suitable for R&D laboratories of the pharmacy, food industry, chemical industry, etc. It is the most ideal equipment to trial-production or production in small batch to suppress various kinds of particle material into round and abnormal tablets. Circled with Stainless steel and Lucite, the machine is well protected from pollution and also has a good view of the internal structure. It has the advantages of little volume, light weight, neat appearance, safe decompress equipment, complete function, low noises, electrodeless various speed, etc.
Main Technical Parameters
|
Model |
ZP-5A |
ZP-7A |
ZP-9A |
|
Quantity of Punch & Die (set) |
5 |
7 |
9 |
|
Max. Pressure (kn) |
40 |
40 |
40 |
|
Max. Dia.(mm) |
15 |
15 |
15 |
|
Max. Thickness(mm) |
6 |
6 |
6 |
|
Max. Depth of Filling (mm) |
15 |
15 |
15 |
|
Rotate Speed (r/min) |
32 |
32 |
32 |
|
Production Capacity (pcs/h) |
9600 |
13440 |
17280 |
|
Voltage (V/Hz) |
220/50 |
220/50 |
220/50 |
|
Motor Power (kw) |
1.5 |
1.5 |
1.5 |
|
Dimension (mm) |
640*480*1100 |
640*480*1100 |
640*480*1100 |
|
Weight (kg) |
260 |
260 |
260 |

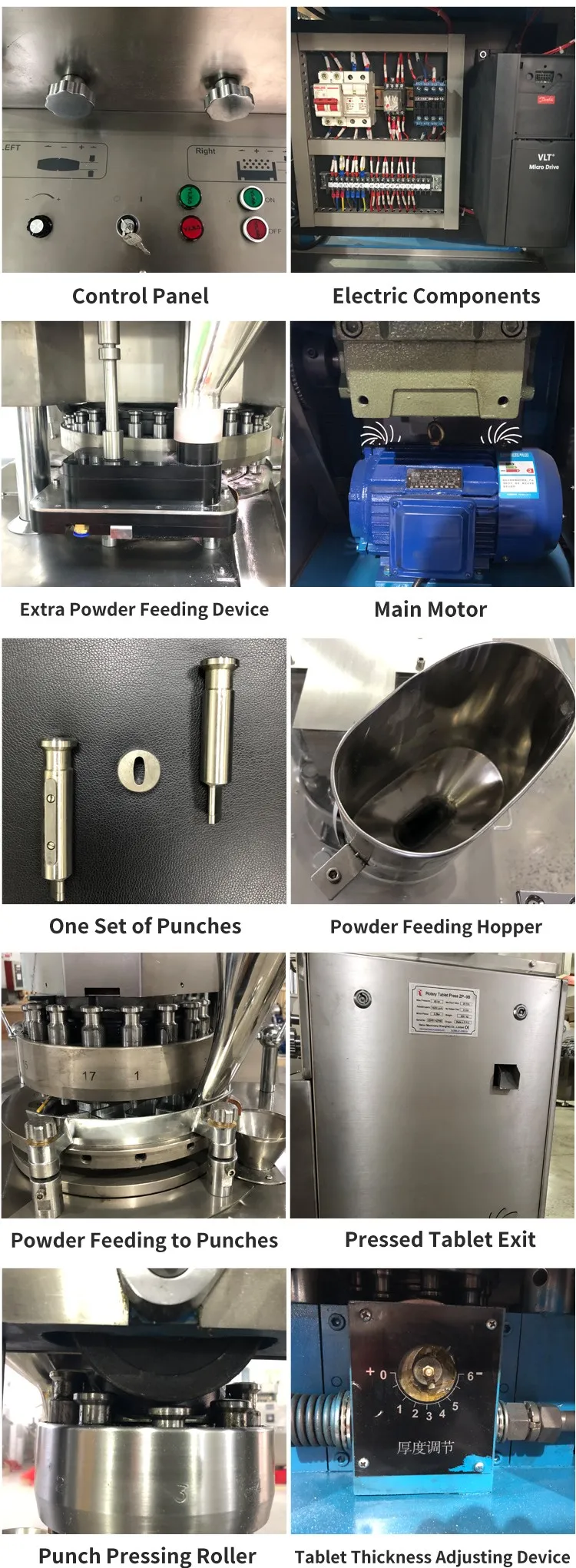

Machine Details
 |
Packing
 |
Applications
 |
