KGF-10 Vial Filling and Capping Machine

Introduction

This machine is the mian filling machine in the liquid production line, which is mainly used for filling, capping and capping plastic bottles. It adopts straight conveying, 10-pump stainless steel metering pump double-row linear filling, with bottleless stop filling function, electromagnetic vibrator feeding caps, double-head screwing cap. Advanced design and compact structure.

Main Features

(1) Filling system;

The filling system adopts 10-head double-row filling, and the stainless steel metering pump controls the filling volume.

(2) Capping feeding system;

The cap feeding system adopts electromagnetic oscillation to feed the cap and automatically screwing the cap.

(3) Capping system;

The capping system adopts four-knife centrifugal capping, the pressure is adjusted by itself.

(4) Electrical control system;

The electrical control system adopts Siemens brand PLC and touch screen, which has good quality and long service life. It has the functions of non-bottle shutdown, output counting, and missing cap alarm (shutdown). High degree of automation.

Main Technical Parameters

Machine Details

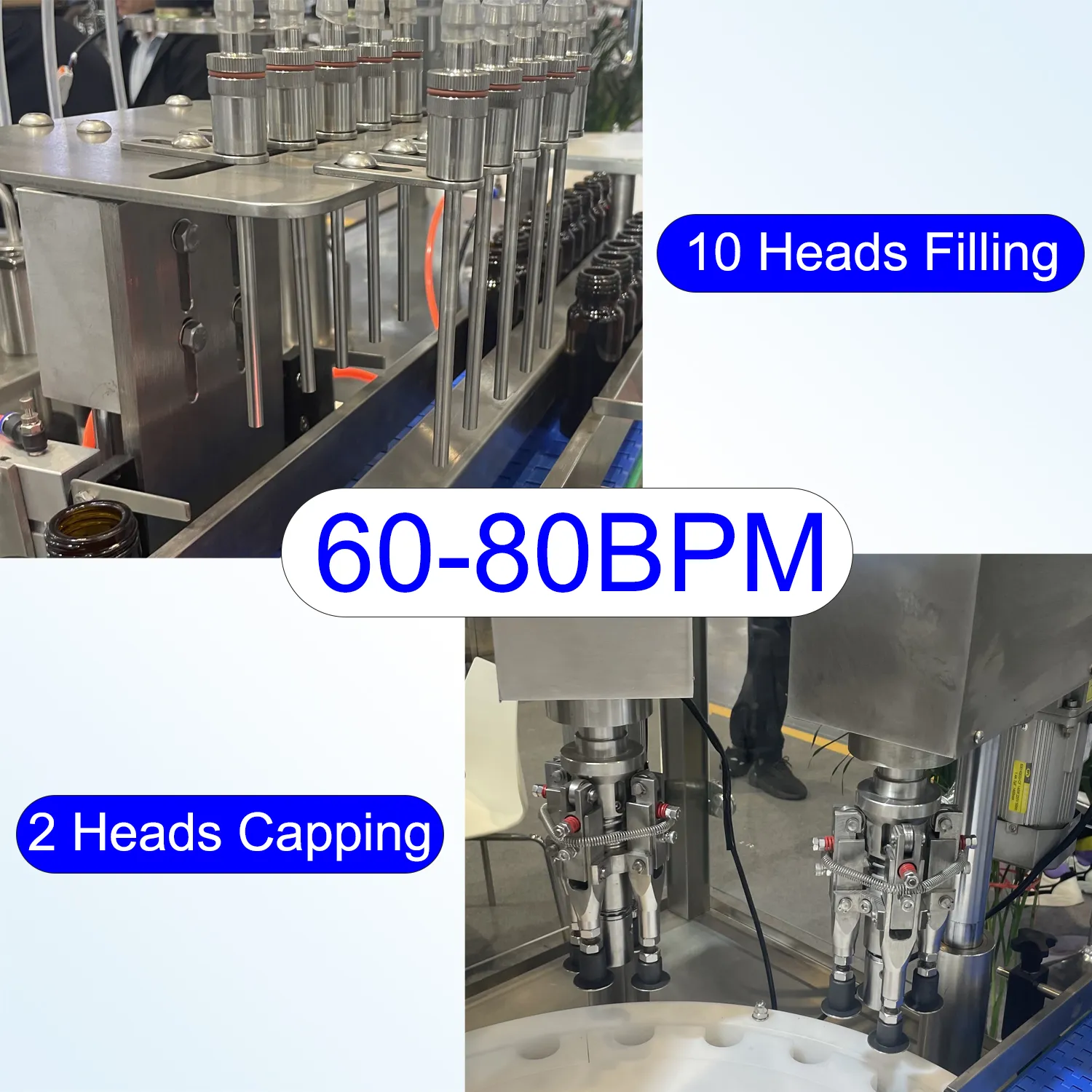

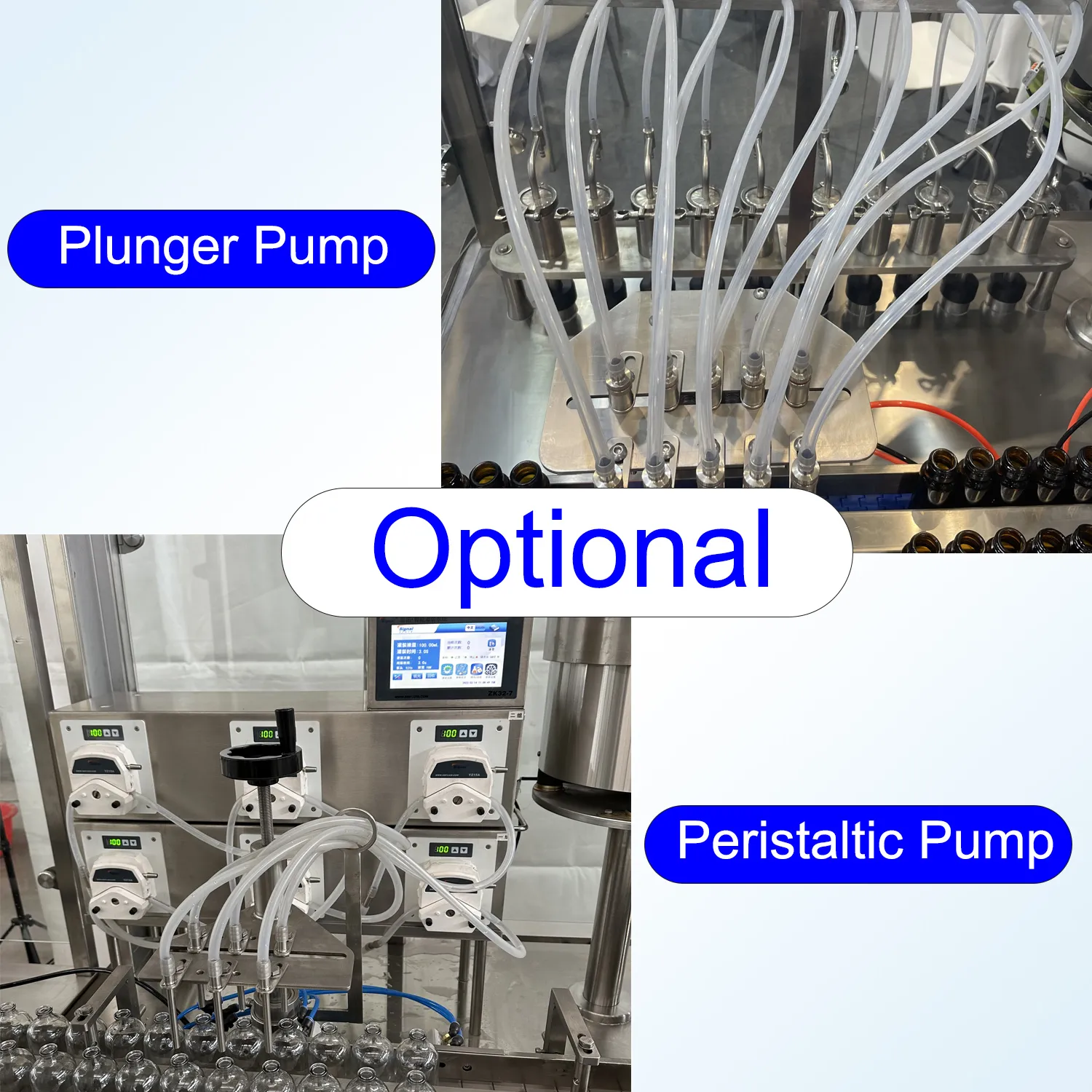

It adopts double row straight line filling with 10 plunger pumps, with no bottle stop filling function. The capping system adopts four-knife centrifugal capping, double-head capping, and the speed is fast.	Peristaltic pump: It's more convenient for adjusting the filling volume. And the clealing is very easy.  Pluner Pump: It applies to only one filling volume. It enables long-term stable filling.

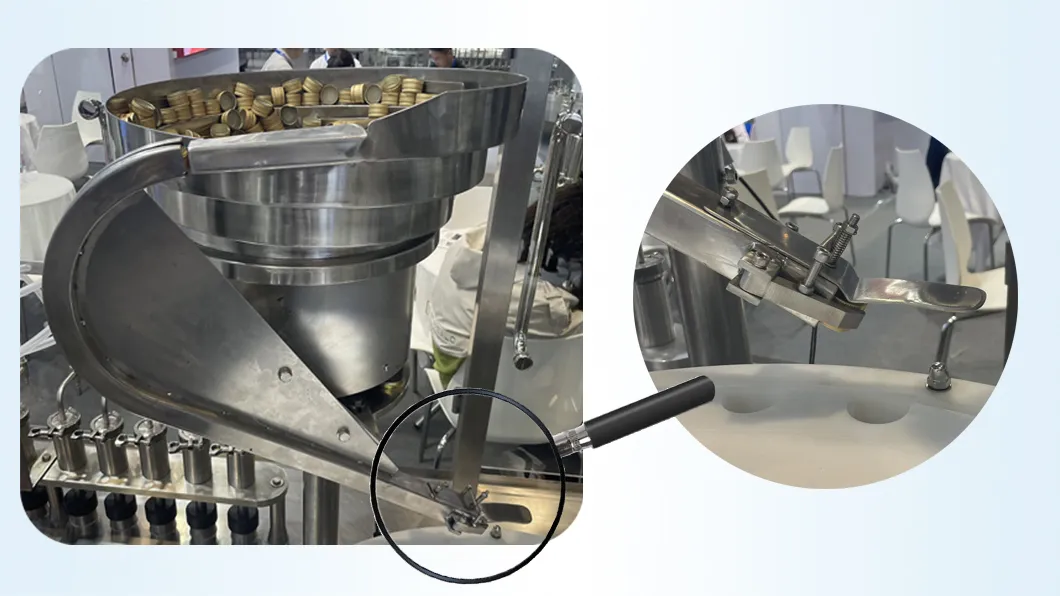

The capping feeding system adopts electromagnetic vibrating to feed the cap and automatically screwing cap.

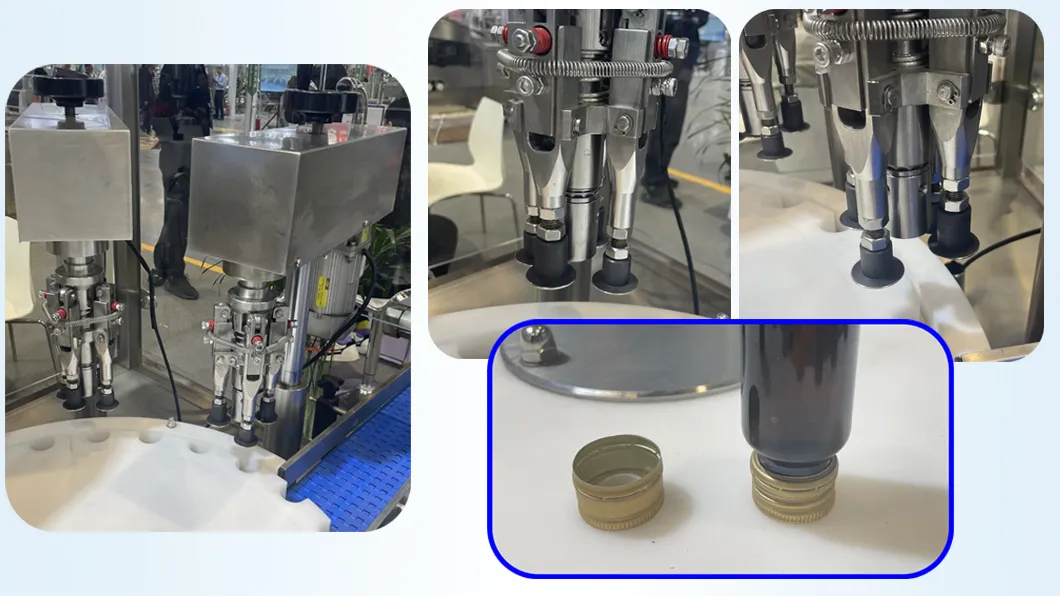

The capping system adopts four-knife centrifugal capping, which is controlled by independent motor.

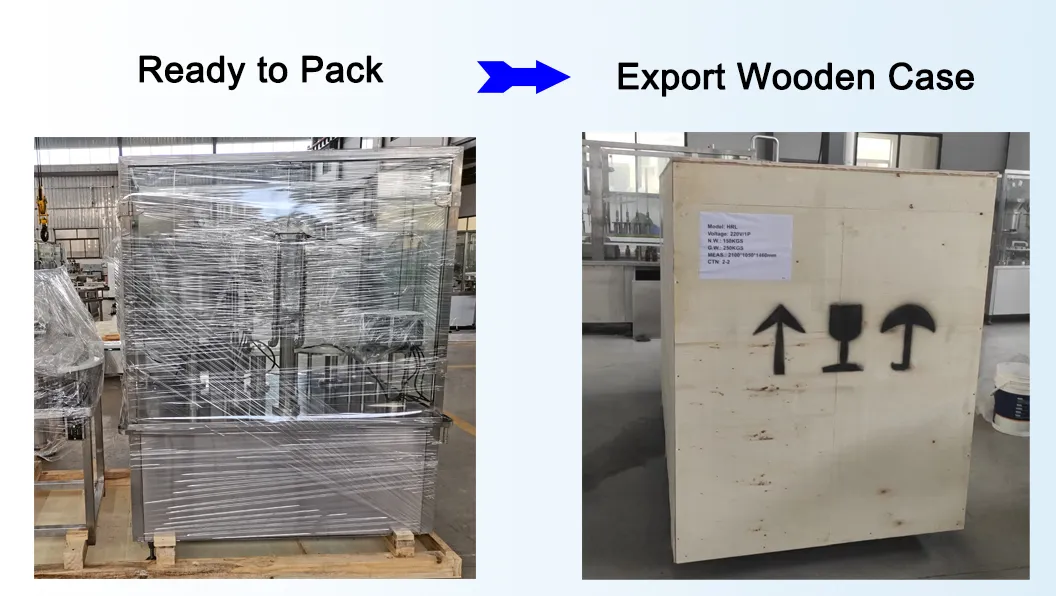

Packing

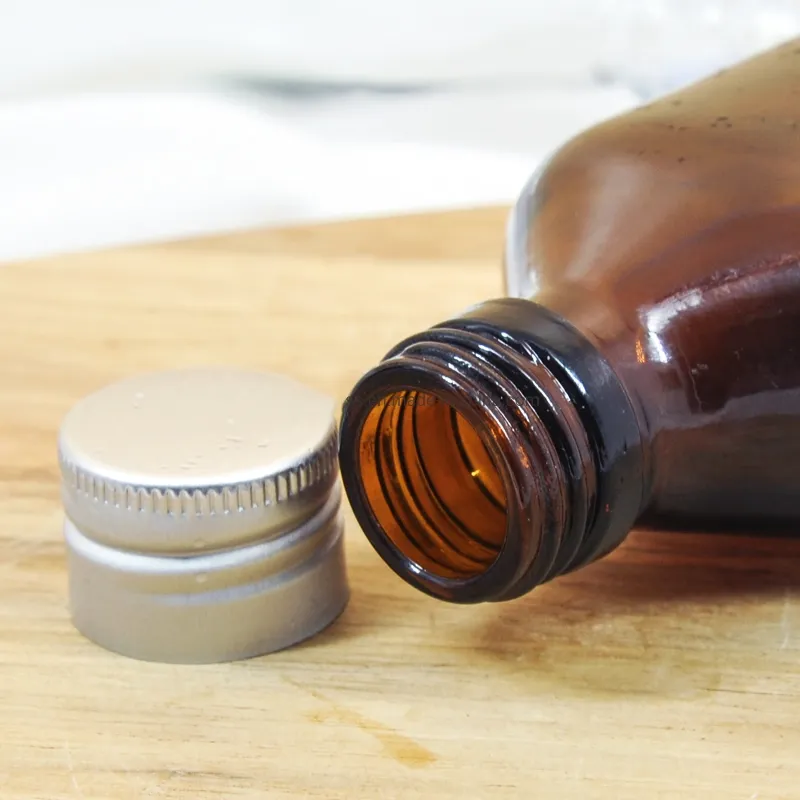

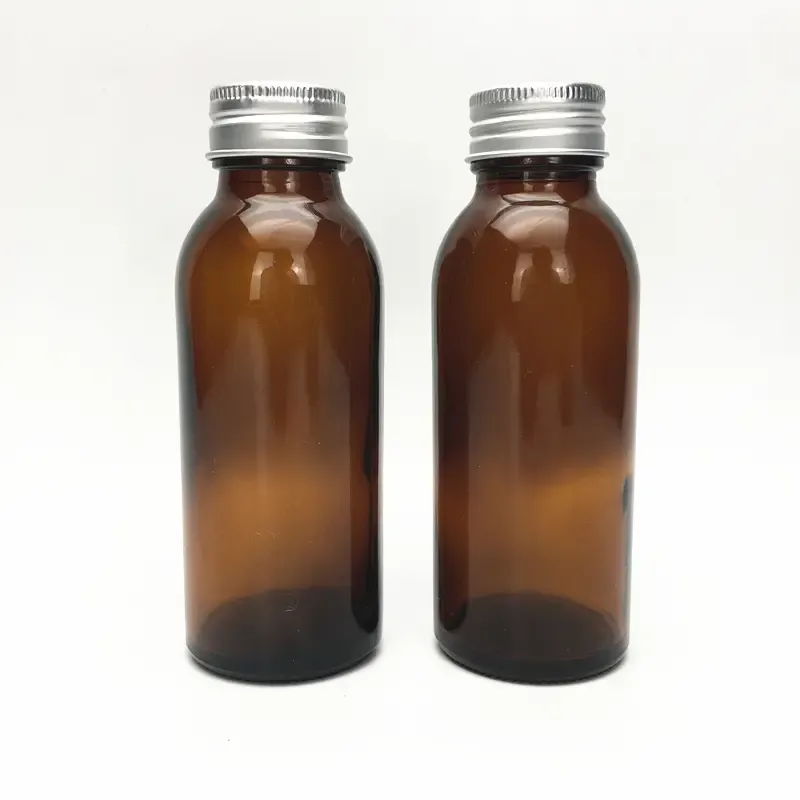

Applications
